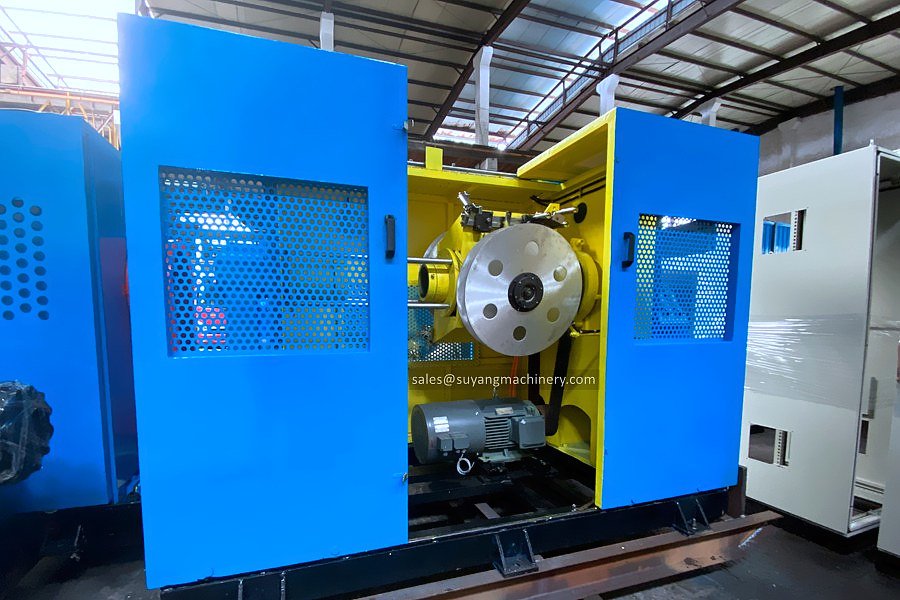

Non-metallic Taping Machine
This is Cable Taping machine that used for lapping and taping non-metallic tapes on wires and cables.
This taping head is suitable for below tapes:
>Polyester tapes
>Composite aluminum-plastic tapes
>Non-woven tapes
Menu
Features of our Non-metallic Taping Machine
1. Eccentric type taping model.
2. Designed for Cu and Al foils, textile, PE, paper as well as other no-metal tapes.
3. The taping machine is individual AC motor drive.
4. Equipped with 2 tape pads per taping head.
5. Tape pad size available from 500mm to 800mm.
6. Stepless adjustable taping pitch.
7. Tension controlled by Hysteresis brake or normal mechanical friction type.
8. PLC + HMI control system is available.
Main Technical Parameters of Non-metal Taping Machine:
| Tape pad diameter | Φ500 | Φ600 | Φ710 |
| Tape width (mm) | 15~60 | 15~80 | 15~80 |
| Cable core OD (mm) | Φ80 | Φ100 | Φ120 |
| Max speed (rpm) | 700 | 600 | 500 |
