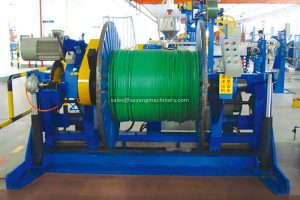

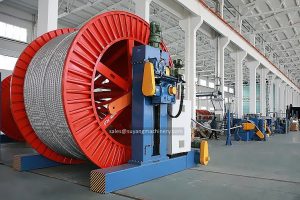

Column Take-up and Pay-off
This column type take-ups and pay-offs are mainly applied for take-up and pay-off wire and cable or winding and unwinding steel rope and strand.
This column pay-off & take-up are suitable in below cable production processes:
• Wire Stranding
• Cable Laying-up
• Wire and Cable Taping
• Cable Extruding & Sheathing
• Armoring & Screening
• Winding & Rewinding
Features of our Column Take-up and Pay-off
1. Reliable, practical and Cost-Effective !
2. Drum diameter available from 800mm to 3150mm.
3. Easy and fast Loading and unloading drums.
4. Reasonable structure and reliable, easy operation.
5. Good rigidity, convenient maintenance.
6. Take-up with separate Traverse system.
7. Pay-off with Disc brake or Magnet powder brake.
8. Customization available as per requirements.
9. Without foundation type is optional so that you needn’t dig the ground.
Technical Specifications:
| Model | Φ1250 | Φ1600 | Φ2000 | Φ2500 | Φ3150 |
| Drum diameter: | PN800-PN1250 | PN800-PN1600 | PN1250-PN2000 | PN1600-PN2500 | PN1600-PN3150 |
| Drum width: | 600-950mm | 600-1180mm | 950-1500mm | 1180-1900mm | 1180-2300mm |
| Cable diameter: | ≤25mm | ≤35mm | ≤50mm | ≤60mm | ≤100mm |
| Traverse pitch: | 5-40mm | 5-40mm | 10-80mm | 10-100mm | 25-140mm |
| Load capacity: | 4T | 6T | 10T | 12T | 18T |
