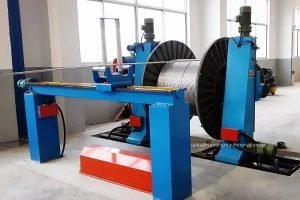

Heavy-duty Take-up and Pay-off
This machine is a heavy-duty floor travelling type take-up and also pay-off machine used in various of wire and cable processing lines.
Menu
Features of our Heavy-duty Take-up and Pay-off
1. Portal type double-column rail travelling structure.
2. All the parts to handle the drum are enhanced.
3. DC motor with EUROTHERM 590 series DC controller.
4. Traversing pitch is set on the touch screen, which can be adjusted online at any moment.
5. The traversing speed will follow the take-up / pay-off speed automatically.
6. SIEMENS PLC + HMI control.
Main technical paramaters:
| Model | Φ4500 | Φ5000 |
| Suitable Cable diameter: | Φ30~Φ80 | Φ40~Φ200 |
| Suitable Reel diameter: | Φ2500~Φ4500 | Φ3200~Φ5000 |
| Suitable Reel width: | 1900-2500mm | 2300-2800mm |
| Take-up speed (max): | 40 m/min | 30 m/min |
| Load Capacity: | 60 T | 70 T |
