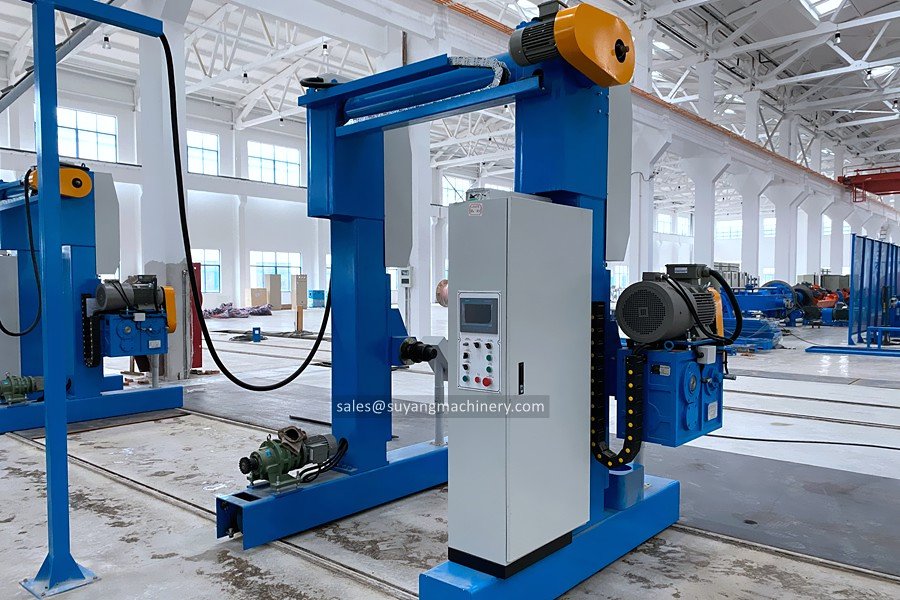

Portal type Take-up and Pay-off
This Portal type take-up and pay-off machines are mainly used for Take-up and Pay-off stranded wire and cable to large size drums.
Portal pay-offs and take-ups are suitable in below cable manufacture processes:
• Wire Stranding
• Cable laying-up
• Wire Lapping & Taping
• Cable Extruding & Sheathing
• Wire Armouring & Screening
• Unwinding & Rewinding.
• CCV line and VCV line
Features of our Portal type Take-up and Pay-off
1. Reliable and Cost-effective!
2. Fast and Easy Reel Loading and Unloading.
3. High-quality seamless steel tube welded with nice appearance and long use life.
4. Floor rail Travelling to avoid the cable bending deformation.
5. Take-up motor can be Z4 DC motor or AC variable frequency motor drive.
6. A wide variety of Pay-off tension control options.
7. Cable moving guider traverse can be variable frequency motor or Servo motor drive.
8. Advanced and Ergonomically designed Electrical control.
9. Full safety limits designed.
10. SIEMENS PLC with touch screen control.
Custom design or configurations are available upon request.
| Model | Φ1250 | Φ1600 | Φ2000 | Φ2500 | Φ3150 |
| Cable diameter: | φ3~φ30 | φ5~φ40 | φ7~φ70 | φ10~φ100 | φ20~φ130 |
| Drum diameter: | 630~1250mm | 630~1600mm | 800~2000mm | 1250~2500mm | 1600~3150mm |
| Drum width: | 475-950mm | 475-1180mm | 600-1500mm | 950-1900mm | 1180-2300mm |
| Load capacity: | 3 T | 4/8 T | 6/10 T | 10/20 T | 15/20 T |
